Exterior, Spec, Model

Exterior

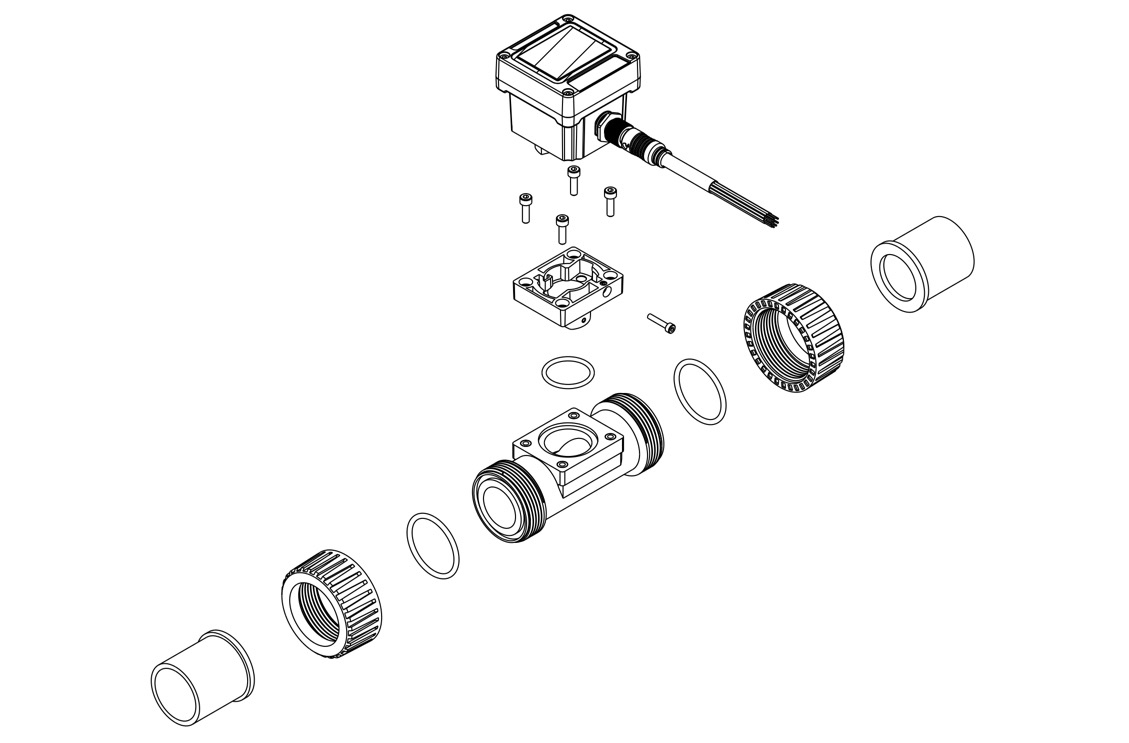

Exploded views

Products specs

Mechanism Specs

Installation method

in-line (Pipe segment)

Fluid in pipes temperature

UPVC:0~50 °C (32~122°F), For higher temperature, please use PPH or PVDF or 316L Stainless Steel*

Device working environment temperature

-10~60°C (14~140°F)

T-connector adapter

UPVC Gluing adapter(ASTM, JIS, DIN) UPVC internal and external thread adapter (BSPT and NPT),

PPH / PVDF insertion welding fitting, UPVC / PPH / PVDF Spigot

T-connector diameter

DN15-65 (½" to 2-1/2")

Paddle material

PVDF or PPH with embedded magnet + ceramic bearing and shaft

T-connector material

UPVC / PPH / PVDF (Made to order)/ 316L Stainless Steel*

Power supply

DC 24V +/- 10% 100mA

Response time

< 0.5 or 1 second

Waterproof level

IP66 **

Measurement Specs

Applicable fluid maximum dynamic viscosity

300cSt***

Applicable fluid

Clear, oil or chemicals with less impurities (<1%)

Linearity

± 0.5 % FS (>0.3m/s)

Reproducibility

± 0.4 %

OR tolerance

± 2.5 % OR

Measuring principle

Paddle Wheel

Flow velocity range

± 0.3~10 m/s

Transient data

Instantaneous flow volume and flow velocity

Cumulative data

Positive and negative net flow volume accumulation, past 14 days and long time accumulative net flow volume.

User Interface

Language

English, Traditional Chinese (Others customizable)

Unit

Metric: Litre, cubic meters, meters

Imperial: foot, Cubic foot, Uk gallon, US gallon

Time: second, minute, hour

Display

Dual screen display: Large 5-Digit 16 Color Backlight LCD display

Display digits

LCD 10 Digits (Not including sign and decimal point)

Operation buttons

4 Key touch buttons

Wired communication

FP-AS310A Analog output 4-20mA / NPN optical coupler switch signal

FP-AS310R Modbus RTU RS485 Two-line

(ship with 2 meter cable)

** IP66:The IP Code, International Protection Marking, IEC standard 60529, sometimes interpreted as Ingress Protection Marking, classifies and rates the degree of protection provided by mechanical casings and electrical enclosures against intrusion, dust, accidental contact, and water. The first digit indicates the level of protection that the enclosure provides against access to hazardous parts (e.g., electrical conductors, moving parts) and the ingress of solid foreign objects. The second digit indicates the level of protection that the enclosure provides against harmful ingress of water.

First 6 stands for dust tight: No ingress of dust; complete protection against contact (dust tight). A vacuum must be applied. Test duration of up to 8 hours based on air flow.

Second 6 stands for powerful water jets: Water projected in powerful jets (12.5 mm) against the enclosure from any direction shall have no harmful effects.

*** The device is calibrated with normal temperature water. Fluids with different viscosities may have different results, and may also change the minimum and maximum flow velocity.

**** The flow velocity range may be slightly different due to factors such as piping diameter and fluid coefficient。

The LCD provides three-color backlight. Alarm A B C lights only work in the "on" setting. The lights will not work in the dnd and off settings. The definitions are as follows: Green: The host displays real-time information and the data is within the normal range. Flashing red: The host has a major abnormality Alarm-A. Please see the warning instructions page. Continuous red: Alarm B The host meets the user-specified conditions, or Alarm C maintenance matters, please see the warning instructions page. Orange: The host is normal, and the display screen is in the historical data query and setting page.
