# T-connector

## **Exterior** <a href="#exterior" id="exterior"></a>

<figure><img src="https://1029883065-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F1LFXmYU1oAy08IUwsTZc%2Fuploads%2FWpaIliyJG31zJjoILiSO%2Fimage.png?alt=media&#x26;token=610272f0-df6d-4f1f-8714-b8c03314efde" alt=""><figcaption></figcaption></figure>

### **Shipping Contents**

Unless otherwise agreed in the order, the standard shipment includes the following components:

* Tee fitting × 1

For the **Union type**, the shipment also includes:

* Union nuts for tee fitting × 2
* Union end connectors × 2
* Union O-rings × 2

The tee fitting is typically shipped together with the paddlewheel assembly.

### Size, material, model <a href="#size-material-model" id="size-material-model"></a>

| Parts             | Material                            |
| ----------------- | ----------------------------------- |
| T-connector       | UPVC, PPH or PVDF (for order made) |
| Nuts              | UPVC, PPH or PVDF (for order made) |
| Union adapter     | UPVC, PPH or PVDF (for order made) |
| Paddle set screws | Stainless steel 304                 |
| O-ring            | EPDM、VITON、FEPM (for order made)    |

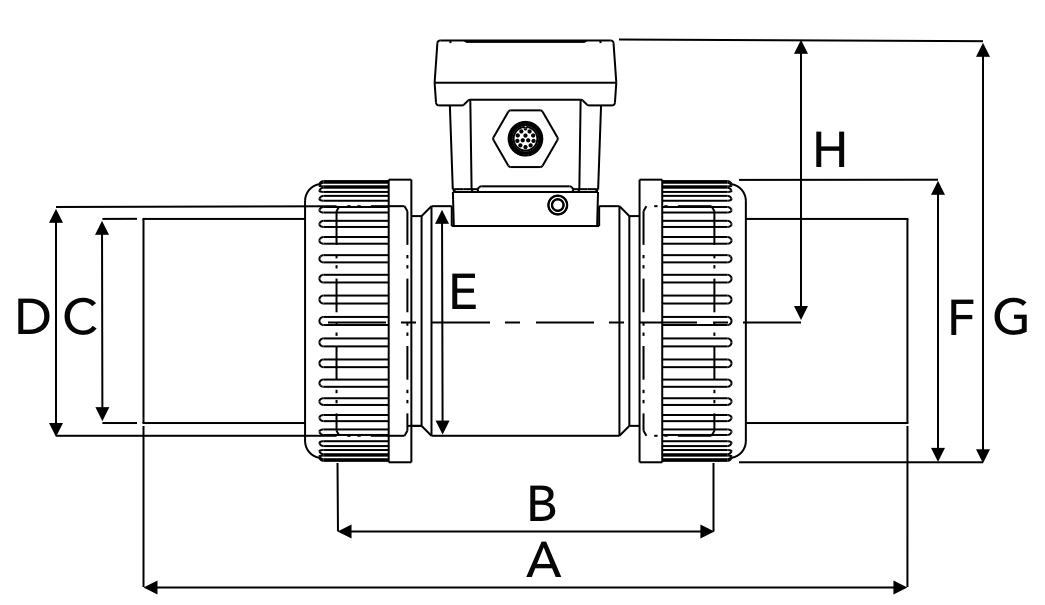

### UPVC pipe - union diameter size(mm) <a href="#upvc-pipe-union-diameter-size-mm" id="upvc-pipe-union-diameter-size-mm"></a>

<figure><img src="https://content.gitbook.com/content/1LFXmYU1oAy08IUwsTZc/blobs/52tsPJQEW16C0Y1GUMH1/paddle-wheel-flowmeter-union-size.png" alt=""><figcaption></figcaption></figure>

<table data-header-hidden><thead><tr><th></th><th width="134">A</th><th>B</th><th>C</th><th>D</th><th>E</th><th>F</th><th>G</th><th>H</th></tr></thead><tbody><tr><td></td><td>A</td><td>B</td><td>C</td><td>D</td><td>E</td><td>F</td><td>G</td><td>H</td></tr><tr><td>½"</td><td>164</td><td>100</td><td>27.6</td><td>36</td><td>62.3</td><td>46.2</td><td>115.7</td><td>86.2</td></tr><tr><td>¾"</td><td>168</td><td>100</td><td>32.6</td><td>41.9</td><td>60</td><td>50.5</td><td>115.7</td><td>85.7</td></tr><tr><td>1"</td><td>168</td><td>100</td><td>40.6</td><td>50</td><td>60</td><td>60</td><td>115.7</td><td>85.7</td></tr><tr><td>1¼"</td><td>210</td><td>114</td><td>50.2</td><td>59.6</td><td>65</td><td>75.6</td><td>127</td><td>89.2</td></tr><tr><td>1½"</td><td>218</td><td>120</td><td>56</td><td>65.7</td><td>70</td><td>83</td><td>134</td><td>92.5</td></tr><tr><td>2"</td><td>269.5</td><td>133.3</td><td>72</td><td>81</td><td>81</td><td>99.7</td><td>148.8</td><td>99</td></tr></tbody></table>

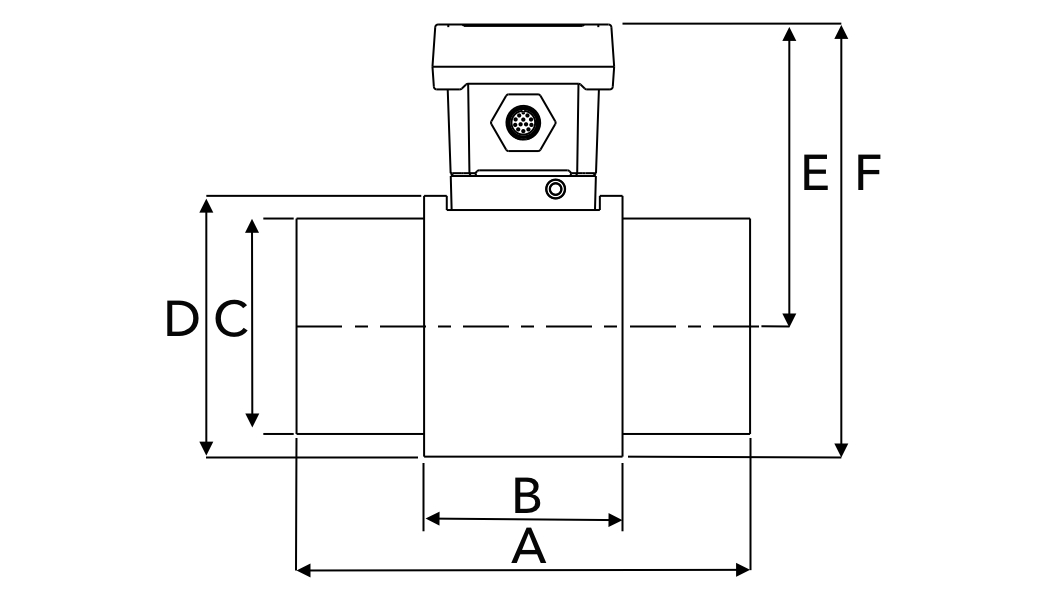

### UPVC pipe - spigot pipe diameter size(mm) <a href="#upvc-pipe-spigot-pipe-diameter-size-mm" id="upvc-pipe-spigot-pipe-diameter-size-mm"></a>

<figure><img src="https://content.gitbook.com/content/1LFXmYU1oAy08IUwsTZc/blobs/lEuRoBOVoL3qL8LMBV31/paddle-wheel-flowmeter-spigot-size.png" alt=""><figcaption></figcaption></figure>

<table data-header-hidden><thead><tr><th></th><th width="52">A</th><th>B</th><th>C</th><th>D</th><th>E</th><th>F</th></tr></thead><tbody><tr><td></td><td>A</td><td>B</td><td>C</td><td>D</td><td>E</td><td>F</td></tr><tr><td>2½"</td><td>160</td><td>70</td><td>76</td><td>92</td><td>106.5</td><td>152.5</td></tr></tbody></table>

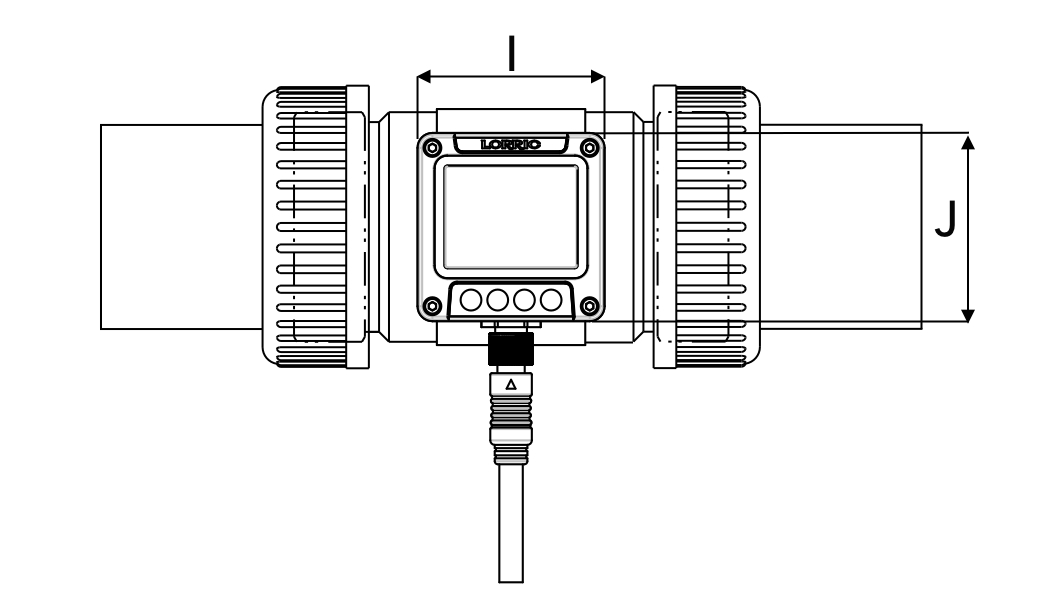

### Device size(mm) <a href="#device-size-mm" id="device-size-mm"></a>

<figure><img src="https://content.gitbook.com/content/1LFXmYU1oAy08IUwsTZc/blobs/kdDSgW2Q6OTaBEo3tm3h/paddle-wheel-flowmeter-device-size.png" alt=""><figcaption></figcaption></figure>

| I  | J  |
| -- | -- |
| 63 | 63 |
