Z05 Scale Factor

Definition

This function calibrates the flow meter’s accuracy. If the displayed flow differs systematically from a reference value, the user can set a scale factor to automatically correct the output.

Usage:

• The measured flow is multiplied by a fixed factor KKK.

• Range: +0.001 to +1000, default +1.0.

• Execution automatically updates K03 (Scale Factor).

Example:

Final Flow=Measured Flow×K\text{Final Flow} = \text{Measured Flow} \times KFinal Flow=Measured Flow×K

If actual flow = 101.5 L but meter shows 100 L, set K=1.015K = 1.015K=1.015.

Z-series parameters currently do not support Modbus read/write.

Notes

1. Z05 cannot accept negative values.

2. To measure reverse flow, enable A17 Neg Flow (Reverse Flow).

3. K03 serves the same function as Z05; users may choose either. Executing this function will automatically update the Z05 Scale Factor setting.

4. (Z-series parameters are for quick setup, consolidating multiple essential settings to simplify installation.)

Operation Procedure

Z05 Scale Factor Setting Steps
• From the main screen(green backlight),
press Orange Button(Setup) to enter settings (orange backlight).
• Use Gray Arrow Buttons to select Z. Easy Setup , press Orange Button(Enter).

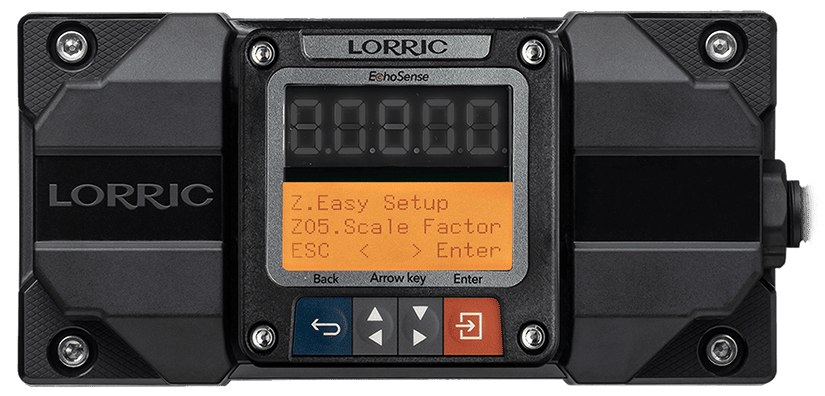

• Use Gray Arrow Buttons to select Z05 Scale Factor, press Orange Button(Enter).
• Use Gray Arrow Buttons to choose the digit to adjust(highlighted in dark gray).
• Press Orange Button(Edit) to enter adjustment mode.
• Adjust digits: Left Gray Button to increase, Right Gray Button to decrease.
• Press Orange Button(Set) to confirm each digit; repeat for other digits as needed.
• After all digits are set, press Blue Button(Save).
• Confirm by pressing Orange Button(Save) (or Blue Button(NOT) to cancel).
• Press Blue Button(ESC) to return to the main screen(green backlight).
