C06 Del Dosing

Definition

Resets the dosing counter to 0.

Notes

• This clears the dosing counter only. It does not affect the flow totalizer — use C02 Del. Total for that.

• Related: C03 Dosing Mode, C04 Dosing Target, C05 Dosing Reset Time, D16 Dosing Alarm.

Operation Procedure

Button Functions (Click to Expand)

When the main screen is displayed in green backlight, the four buttons function as follows:

• Blue Button (leftmost): Return, exit, or save settings.

• Gray Direction Buttons:

  • Left Gray: Previous Page, decrease value, or select item

  • Right Gray: Next Page, increase value, or select item

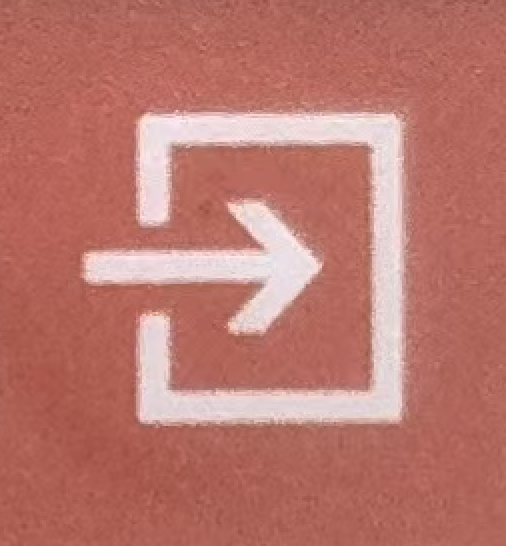

• Orange Button (rightmost): Rightmost button: Enter settings, edit, or confirm selection

Do not hold buttons for extended periods to avoid damage.

Button functions may change depending on the operation context to improve usability or prevent accidental presses.

C06 Del Dosing Setting Steps
• From the main screen (green backlight), press Orange Button (Setup) to enter settings (orange backlight).
• Use Gray Arrow Buttons to select C. Total, press Orange Button (Enter).
• Use Gray Arrow Buttons to select C06 Del Dosing, press Orange Button (Enter).
• Use Gray Arrow Buttons to select Yes.
• Press Orange Button (Set) to confirm.
• Press Blue Button (ESC) to return to the main screen (green backlight).

C06 Options, RS485 Values, Read/Write Commands, and Formats

Parameter Input Range	Description	RS-485 Value
No	-	0
Yes	-	1

Refer to the Read/Write Memory List for the Modbus command format. This parameter uses the Int16 data format.
