B06 Pipe Geo Unit

Definition

Sets the pipeline size unit. Executing this function automatically updates A03 (Pipe Geometry Unit). Default: mm (millimeter).

Notes

N/A

Operation Procedure

Button Functions (Click to Expand)

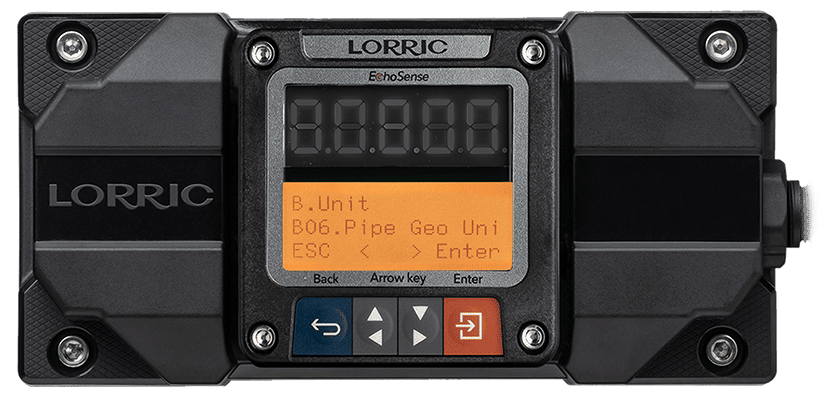

When the main screen is displayed in green backlight, the four buttons function as follows:

• Blue Button (leftmost): Return, exit, or save settings.

• Gray Direction Buttons:

  • Left Gray: Previous Page, decrease value, or select item

  • Right Gray: Next Page, increase value, or select item

• Orange Button (rightmost): Rightmost button: Enter settings, edit, or confirm selection

Do not hold buttons for extended periods to avoid damage.

Button functions may change depending on the operation context to improve usability or prevent accidental presses.

B06 Options, RS485 Values, Read/Write Commands, and Formats

Options	Description	RS-485 Value
mm (Custom)	-	0
inch	-	1

Refer to the Read/Write Memory List for the Modbus command format. This parameter uses the Int16 data format.
