A12 Liquid Soundspeed

Definition

Set the liquid Soundspeed. Default: 1482.

The sound speed of a fluid varies with temperature. Please refer to the Liquid Temperature vs. Sound Speed Reference Table.

Definition

When the user sets A10 (Fluid Type), A12 (Fluid Sound Speed) will be updated accordingly based on the A10 selection.
The unit of A12 is determined by B04 (Flow and Sound Speed Unit).

Operation Procedure

Button Functions (Click to Expand)

When the main screen is displayed in green backlight, the four buttons function as follows:

Blue Button (leftmost): Return, exit, or save settings.
Gray Direction Buttons:
- Left Gray: Previous Page, decrease value, or select item
- Right Gray: Next Page, increase value, or select item
Orange Button (rightmost): Rightmost button: Enter settings, edit, or confirm selection

Do not hold buttons for extended periods to avoid damage.

Button functions may change depending on the operation context to improve usability or prevent accidental presses.

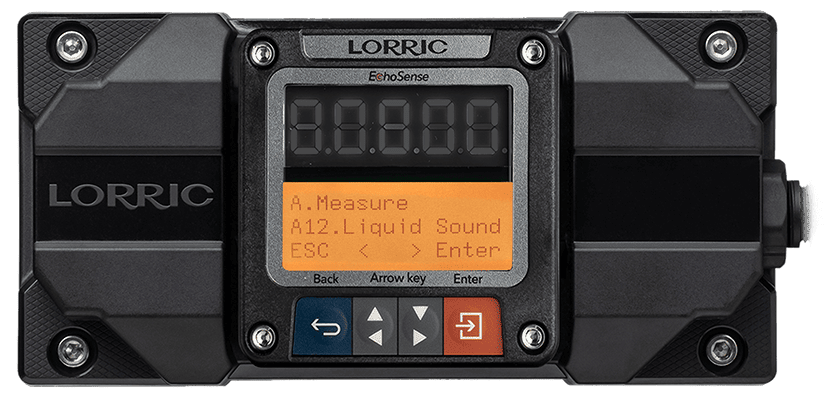

A12 Liquid Soundspeed Setting Steps
• From the main screen(green backlight),
press Orange Button(Setup) to enter settings (orange backlight).
• Use Gray Arrow Buttons to select A. Measurement, press Orange Button(Enter).
• Use Gray Arrow Buttons to select A12 Liquid Soundspeed, press Orange Button(Enter).
• Use Gray Arrow Buttons to choose the digit to adjust(highlighted in dark gray).
• Press Orange Button(Edit) to enter adjustment mode.
• Adjust digits: Left Gray Button to increase, Right Gray Button to decrease.
• Press Orange Button(Set) to confirm each digit; repeat for other digits as needed.
• After all digits are set, press Blue Button(Save).
Confirm by pressing Orange Button(Save) (or Blue Button(NOT) to cancel).
• Press Blue Button(ESC) to return to the main screen(green backlight).

A12 Options, RS485 Values, Read/Write Commands, and Formats

Input Range of This Parameter

Corresponding Values

RS-485 Value

Default

1482

Minimum

100

Maximum

3000

Refer to the Read/Write Memory List for the Modbus command format. This parameter uses the float 32 data format.
