C01 Total Method

Definition

Sets the totalizer counting method. Changing this method will reset all accumulated data. Default is forward flow.

Notes

Changing the counting mode will reset the totalizer to zero and start a new accumulation.

Operation Procedure

Button Functions (Click to Expand)

When the main screen is displayed in green backlight, the four buttons function as follows:

• Blue Button (leftmost): Return, exit, or save settings.

• Gray Direction Buttons:

  • Left Gray: Previous Page, decrease value, or select item

  • Right Gray: Next Page, increase value, or select item

• Orange Button (rightmost): Rightmost button: Enter settings, edit, or confirm selection

Do not hold buttons for extended periods to avoid damage.

Button functions may change depending on the operation context to improve usability or prevent accidental presses.

C01 Total Method Setting Steps
• From the main screen (green backlight),
  press Orange Button (Setup) to enter settings (orange backlight).

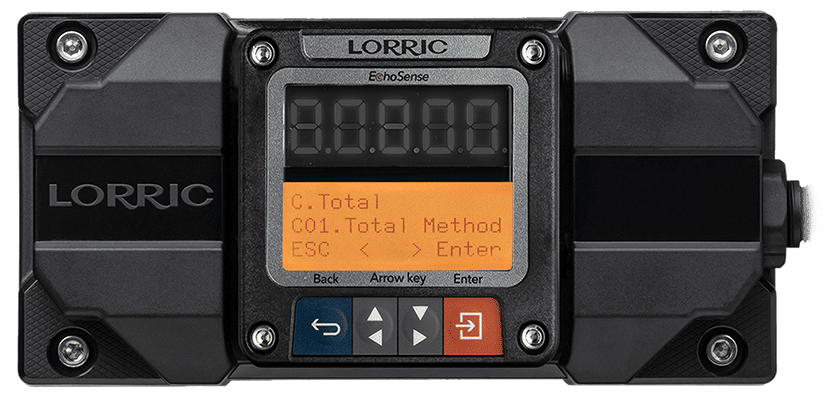

• Use Gray Arrow Buttons to select C. Total, press Orange Button (Enter).
• Use Gray Arrow Buttons to select C01 Total Method, press Orange Button (Enter).
• Use Gray Arrow Buttons to choose the options.
• Press Orange Button (Set) to confirm.
• Press Blue Button (ESC) to return to the main screen (green backlight).

On Main Screen 5: Total <Large> The LCD displays the totalizer value in large digits. The bottom of the screen shows POS, NET, and NEG, representing Forward (POS), Net (NET), and Reverse (NEG), respectively.

C01 Options, RS485 Values, Read/Write Commands, and Formats

Options	Description	RS-485 Value
POS	Forward (Default)	0
NEG	Reverse	1
NET	Net	2

Refer to the Read/Write Memory List for the Modbus command format. This parameter uses the Int16 data format.
