H10 System Info

Definition

Displays system information to help users and the manufacturer verify the model, firmware version and Paddle condition.

Notes

In LORRIC flowmeters using AxleSense shaft-sensing technology, magnets embedded within the paddle wheel generate a periodically changing magnetic field as the fluid drives the paddle wheel to rotate.

The capital M (Maximum) and lowercase m (Minimum) shown on the screen are magnetic field diagnostic indicators.

• M: Highest detected magnetic field strength (peak value)

• m: Lowest detected magnetic field strength (trough value)

These values help verify paddle wheel rotation and sensor detection status.

Operation Procedure

Button Functions (Click to Expand)

The main unit has four buttons. The bottom line (Line 3) of the LCD displays the current function of each button. Under normal operation, the button functions are as follows:

• Blue Button: Leftmost button: Return, exit, or save settings.

• Gray Direction Buttons:

  • Left Gray: Previous Page, decrease value, or select item

  • Right Gray: Next Page, increase value, or select item

• Orange Button: Rightmost button: Enter settings, edit, or confirm selection

Do not hold buttons for extended periods to avoid damage.

Button functions may change depending on the operation context to improve usability or prevent accidental presses

H10 System Info. Access Procedure:
1.From the main screen (green backlight),
  press the orange Setup button at the bottom right to enter the settings menu (orange backlight).
2.Use the arrow keys to select H System, then press Enter (orange key).

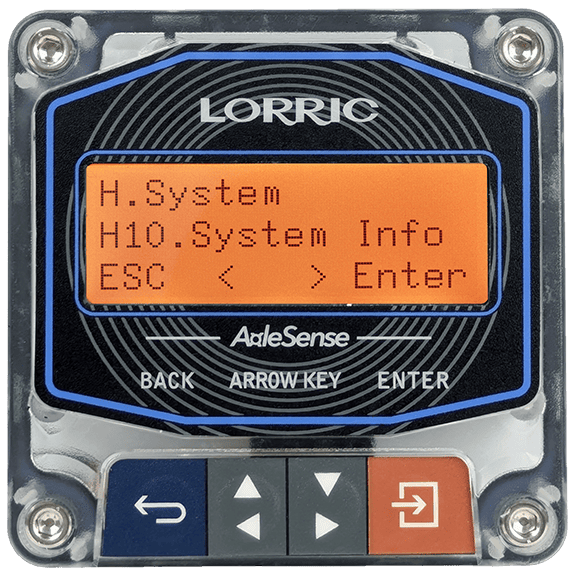

3.Use the arrow keys to select H10 System Info., then press Enter.

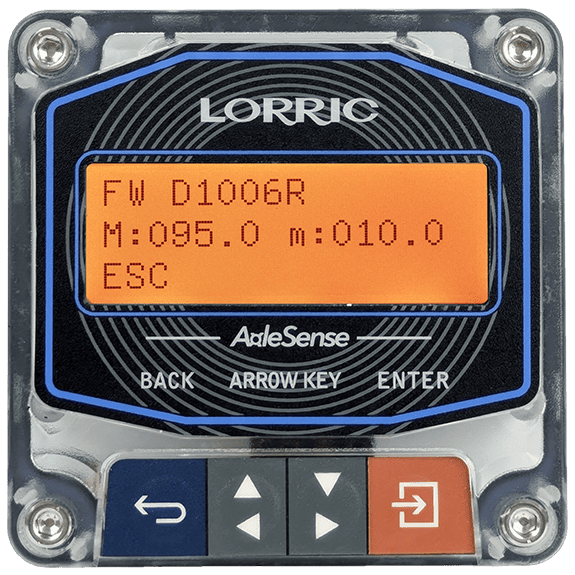

4.The system information is displayed:
• D1006R: Firmware version
• M (Maximum): The maximum magnetic-field strength currently detected by the magnetic sensor, or the peak value.
• m (Minimum): The minimum magnetic-field strength currently detected by the magnetic sensor, or the trough value.
