F03 Sim. PulseHz

F03 Sim. PulseHz is only applicable to FP-AS310A.

Definition

Sets the simulated OCT pulse output frequency in pulses per second (Hz). Range: 1–1000. Default: 0.

Notes

1. Set E01 NC/NO to define the pulse output state (normally closed or normally open) before enabling this function.

2. Set E03 Pulse Width to define the duration of each output pulse.

3. The pulse signal operates regardless of whether the OCT output function is enabled.

Operation Procedure

Button Functions (Click to Expand)

The main unit has four buttons. The bottom line (Line 3) of the LCD displays the current function of each button. Under normal operation, the button functions are as follows:

• Blue Button: Leftmost button: Return, exit, or save settings.

• Gray Direction Buttons:

  • Left Gray: Previous Page, decrease value, or select item

  • Right Gray: Next Page, increase value, or select item

• Orange Button: Rightmost button: Enter settings, edit, or confirm selection

Do not hold buttons for extended periods to avoid damage.

Button functions may change depending on the operation context to improve usability or prevent accidental presses

F03 Sim. PulseHz Setting Steps
• From the main screen (green backlight),
  press Orange Button (Setup) to enter settings (orange backlight).

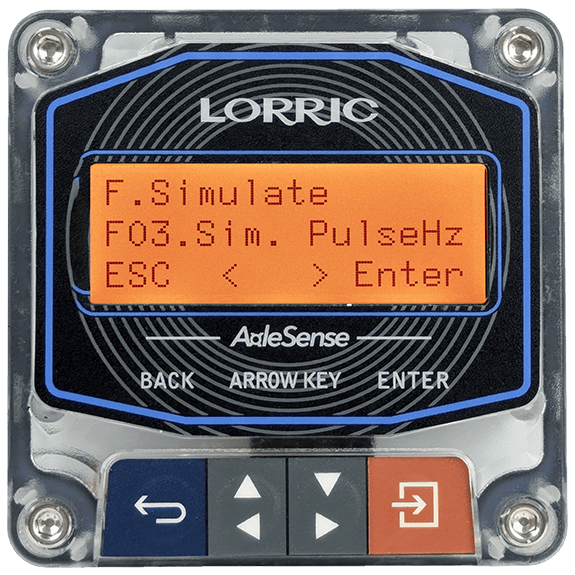

• Use Gray Arrow Buttons to select F. Simulate, then press Orange Button (Enter).
• Use Gray Arrow Buttons to select F03 Sim. PulseHz, then press Orange Button (Enter).
• Use Gray Arrow Buttons to choose the digit to adjust (highlighted in dark gray).
• Press Orange Button (Edit) to enter adjustment mode.
• Adjust the digits: press the Left Gray Button to increase and the Right Gray Button to decrease.
• Press Orange Button (Set) to confirm each digit. Repeat as needed.
• After all digits are set, press Blue Button(Save).
• Confirm by pressing Orange Button (Save), or press Blue Button (NOT) to cancel.
• Press Blue Button (ESC) to return to the main screen (green backlight).

F03 Options, RS485 Values, Read/Write Commands, and Formats

Parameter Input Range	Corresponding Values	RS-485 Value
Default	10 Hz	-
Minimum	1 Hz	-
Maximum	1000 Hz	-
