# 主畫面數據解讀

## 瞬時流量及誤差

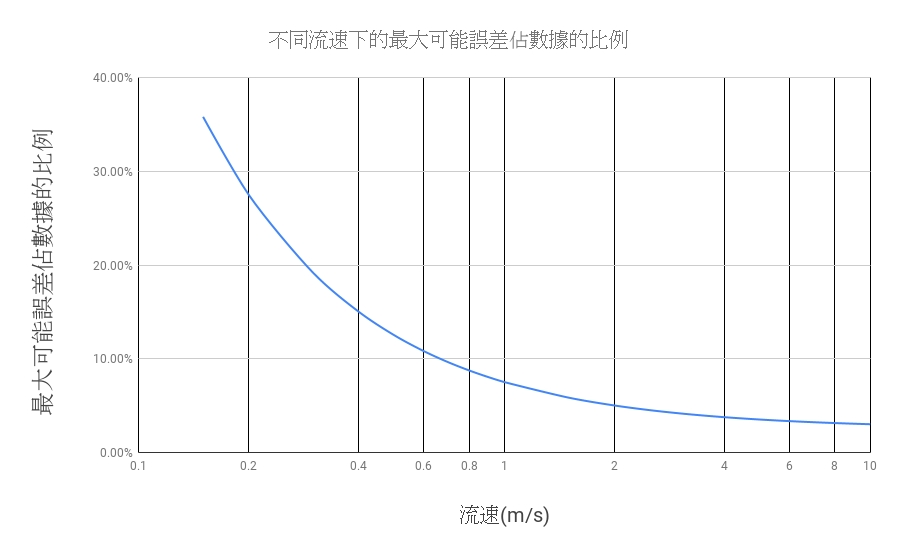

本流量計的最大可能誤差為 0.5 % F.S. + 2.5 % O.R.，換算為在不同流速下最大可能誤差與顯示數據的關係如下圖：

![](https://content.gitbook.com/content/Ijh8HTt5UoGVokMA72zy/blobs/aK9onNXRhQNkF1S08W7a/%E4%B8%8D%E5%90%8C%E6%B5%81%E9%80%9F%E4%B8%8B%E7%9A%84%E6%9C%80%E5%A4%A7%E5%8F%AF%E8%83%BD%E8%AA%A4%E5%B7%AE%E4%BD%94%E6%95%B8%E6%93%9A%E7%9A%84%E6%AF%94%E4%BE%8B.png)

## 流速

本畫面顯示的數據為流量計三通管內的流速，在大多數的情形下會比同口徑的直管位置的流速稍快。

## 累積流量及歷史記錄

累積流量畫面在被人為歸零前會持續計數。

累積流量的上限是 999,999,999 Litre 。


---
