# HMI Overview

### Main Unit Functions

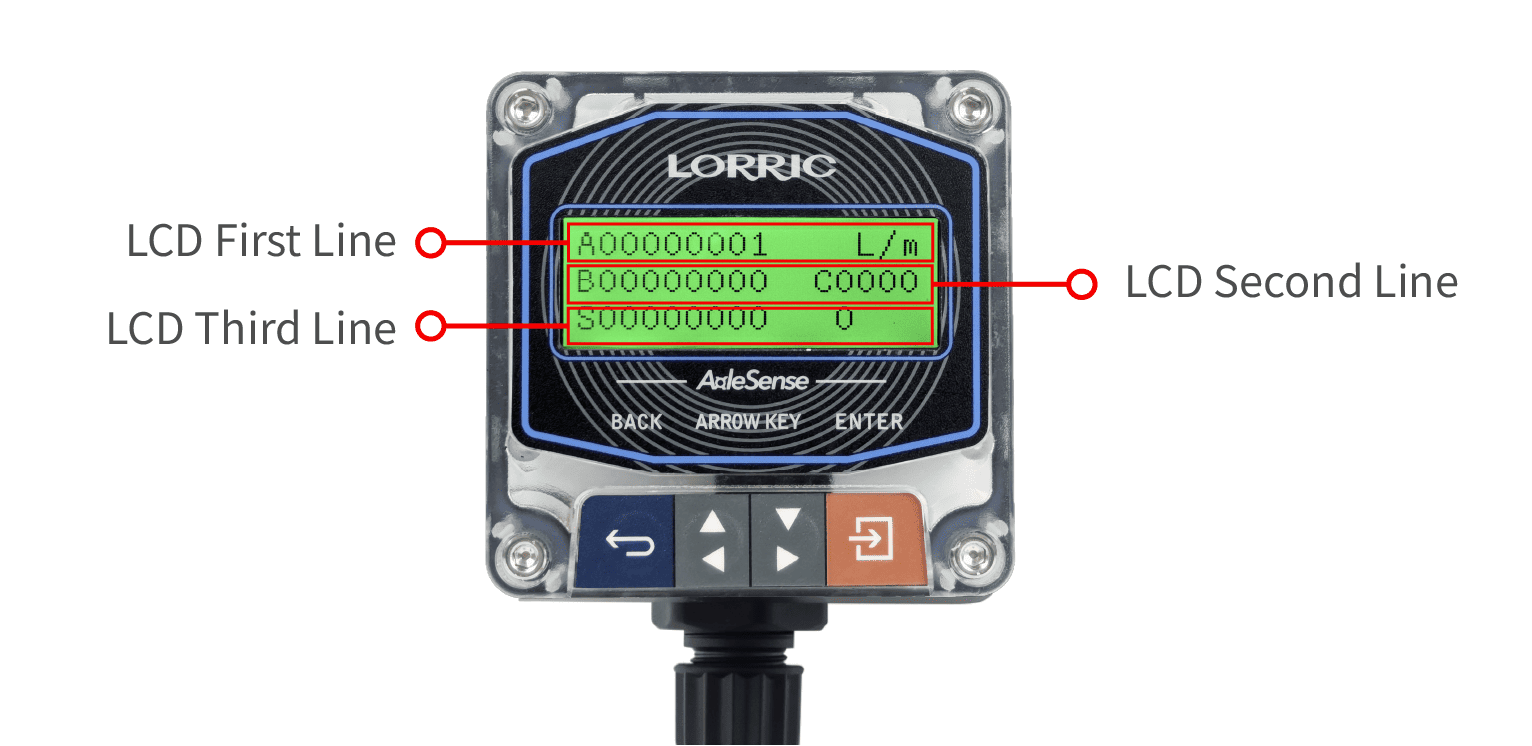

The FP-AS510 features a **3-row, 3-color backlit LCD screen** display for detailed data, page names, units, and button labels:

* Line 1: Current page name and units
* Line 2: Actual measured data
* Line 3: Available key functions for the current screen

<figure><img src="/files/SUHhEvZGzYJZzILzio1s" alt=""><figcaption></figcaption></figure>

### **Button Functions**

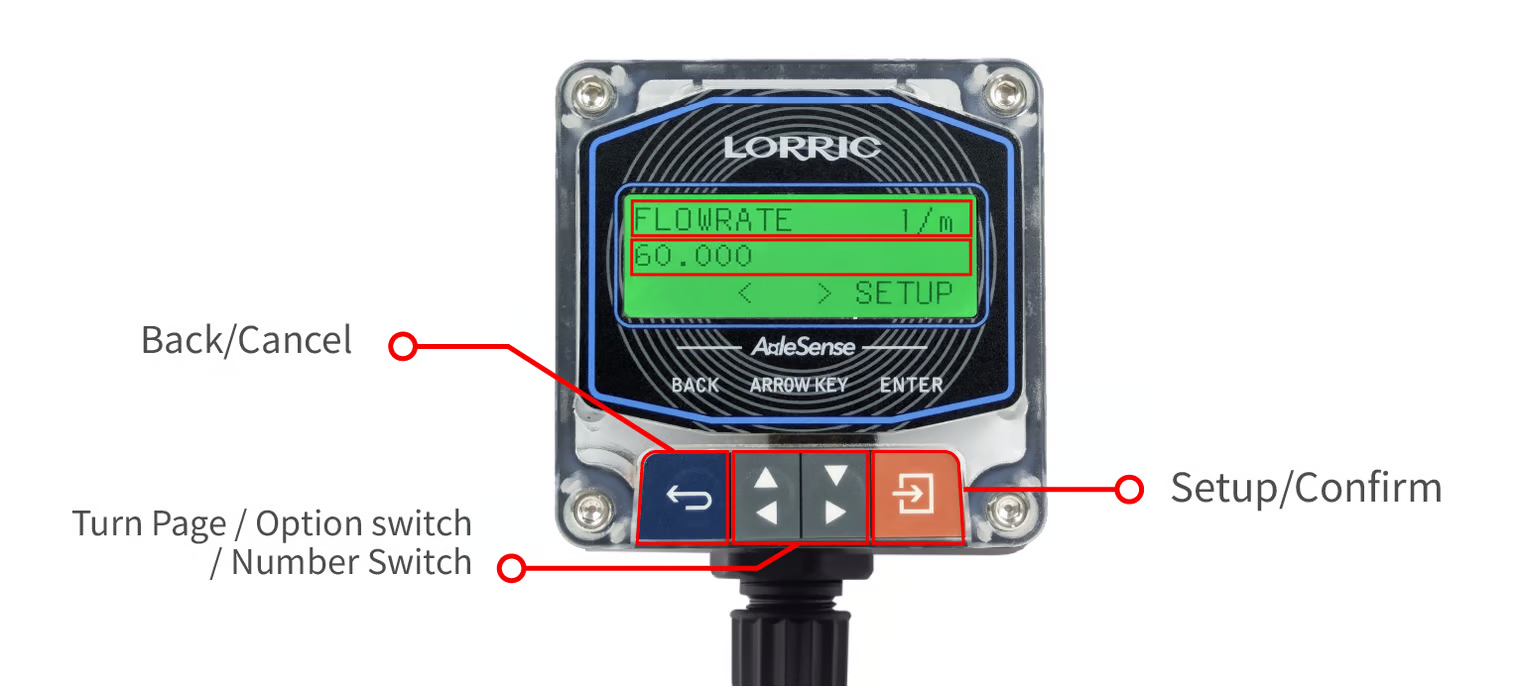

The main unit has 4 buttons. The bottom line of the LCD (Line 3) shows the function of each button. Typically, the buttons are defined as follows:

<details>

<summary><strong>Button Functions</strong> <em>(Click to Expand)</em></summary>

The main unit has **four buttons**. The **bottom line (Line 3)** of the LCD displays the current function of each button. Under normal operation, the button functions are as follows:

* <img src="/spaces/i4ECt41Kyy9211OWazj4/files/bdd75120acea6361d128fd3deec06f1a8277e667" alt="" data-size="line"> **Blue Button -** Leftmost button: Return, exit, or save settings.

Gray Arrow Buttons:

* <img src="/spaces/i4ECt41Kyy9211OWazj4/files/2e37e572251371c6020ab6d9e11c1fcdd5ef0369" alt="" data-size="line"> **Left Gray Button:** Previous Page, decrease value, or select item
* <img src="/spaces/i4ECt41Kyy9211OWazj4/files/50a67ff5744401e217d5b9e838da3f7909be732f" alt="" data-size="line"> **Right Gray Button:** Next Page, increase value, or select item
* <img src="/spaces/i4ECt41Kyy9211OWazj4/files/6c0b22a2048cf9b2afd86fac7a65e414feb967d4" alt="" data-size="line"> **Orange Button:** Rightmost button: Enter settings, edit, or confirm selection

{% hint style="danger" %}
**Do not hold buttons for extended periods to avoid damage.**
{% endhint %}

{% hint style="info" %}
Button functions may change depending on the operation context to improve usability or prevent accidental presses.
{% endhint %}

</details>

<figure><img src="/files/LcWsi3HKHCWTGR9MnenI" alt=""><figcaption></figcaption></figure>

### **LCD Three-Color Backlight Function**

<figure><img src="/files/5o35gobw47YzHFGoE95d" alt=""><figcaption></figcaption></figure>

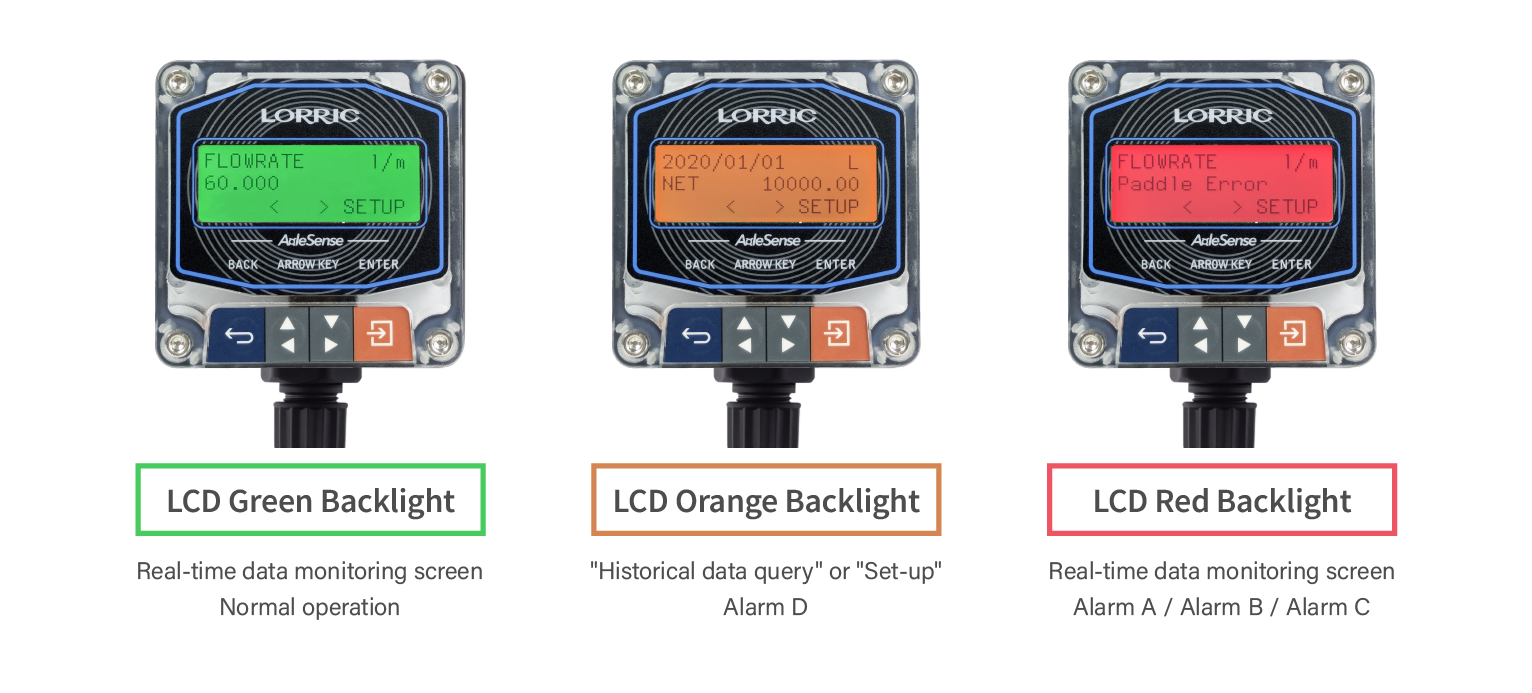

The system provides a three-color backlight display. The **red backlight** is only activated when the alarm setting is **“On”**; if set to **“DND (Do Not Disturb)”** or **“Off”**, the backlight will remain off. The meanings of each color are as follows:

{% stepper %}
{% step %}

### **Green Backlight**

* System operating normally
* Displaying real-time information
* All data within normal range
  {% endstep %}

{% step %}

### **Flashing Red Backlight**

* Major abnormality (**Alarm A**) detected
* Refer to the [**Alarms and System Status**](/qr/fp-as310-english-v5/user-interface/alarm-priority-and-display-method.md) for more information
  {% endstep %}

{% step %}

### **Red Backlight**

* **Alarm B:** User-defined alert condition triggered
* **Alarm C:** Maintenance reminder condition reached
* Refer to the [**Alarms and System Status**](/qr/fp-as310-english-v5/user-interface/alarm-priority-and-display-method.md) for more information
  {% endstep %}

{% step %}

### **Orange Backlight**

* System operating normally
* Display currently on **Settings page**, not real-time information
  {% endstep %}
  {% endstepper %}

{% hint style="info" %}

#### **DND (Do Not Disturb) Mode**

* System detects abnormalities, but **red backlight remains off**.
* Example: **Alarm-A “4 Off Pipe”** triggers no backlight.
* Abnormalities still appear on the **Abnormalities page**.
* **RS485** connection still sends alarm signals.
* **OCT output** continues to signal alarms if configured.
  {% endhint %}


---
