Main Screen

The FP-AS310 features six main screens. The H11 Home Page function allows selection of the screen displayed at startup. Detailed instructions for H11 operation are provided at the end of this chapter.

When the main screen is displayed in green backlight, the four buttons function as follows:

• Blue Button (leftmost): Return, exit, or save settings.

• Gray Direction Buttons:

  • Left Gray: Previous Page, decrease value, or select item

  • Right Gray: Next Page, increase value, or select item

• Orange Button (rightmost): Rightmost button: Enter settings, edit, or confirm selection

Main Screen Menu

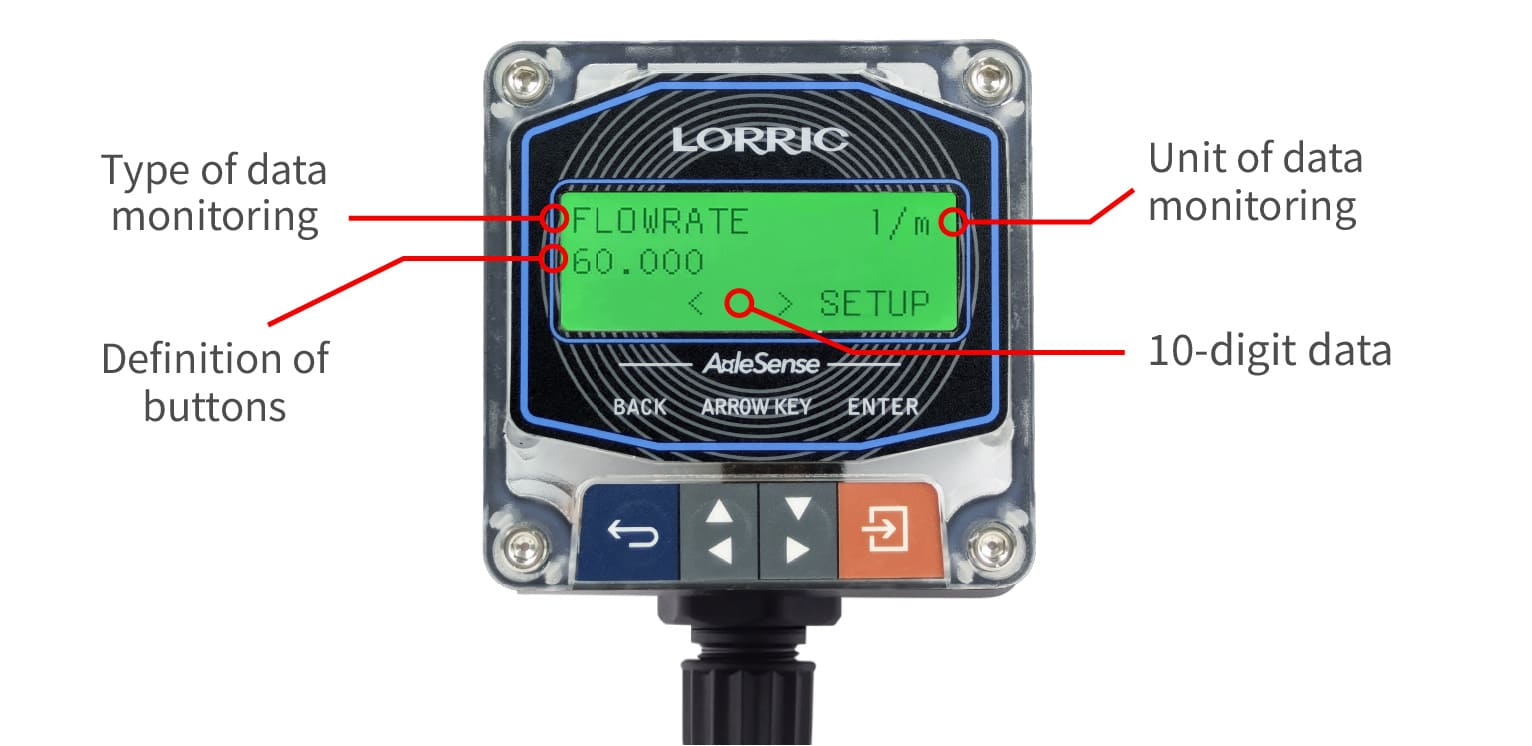

Screen 1: Flowrate

The first line of the LCD shows the flow unit, the second line shows Instant Flowrate, and the third line shows the Setup on the lower right, indicating that pressing the orange button switches to the Settings screen.

Screen 2: Total

The first line of the LCD shows the total flow unit (L), the second line displays Total Flow, and the third line shows Setup on the lower right, indicating that pressing the orange button switches to the Settings screen. Total flow units can be adjusted in B03 Total Unit.

Flow in Simulation Mode is also included in the total flow.

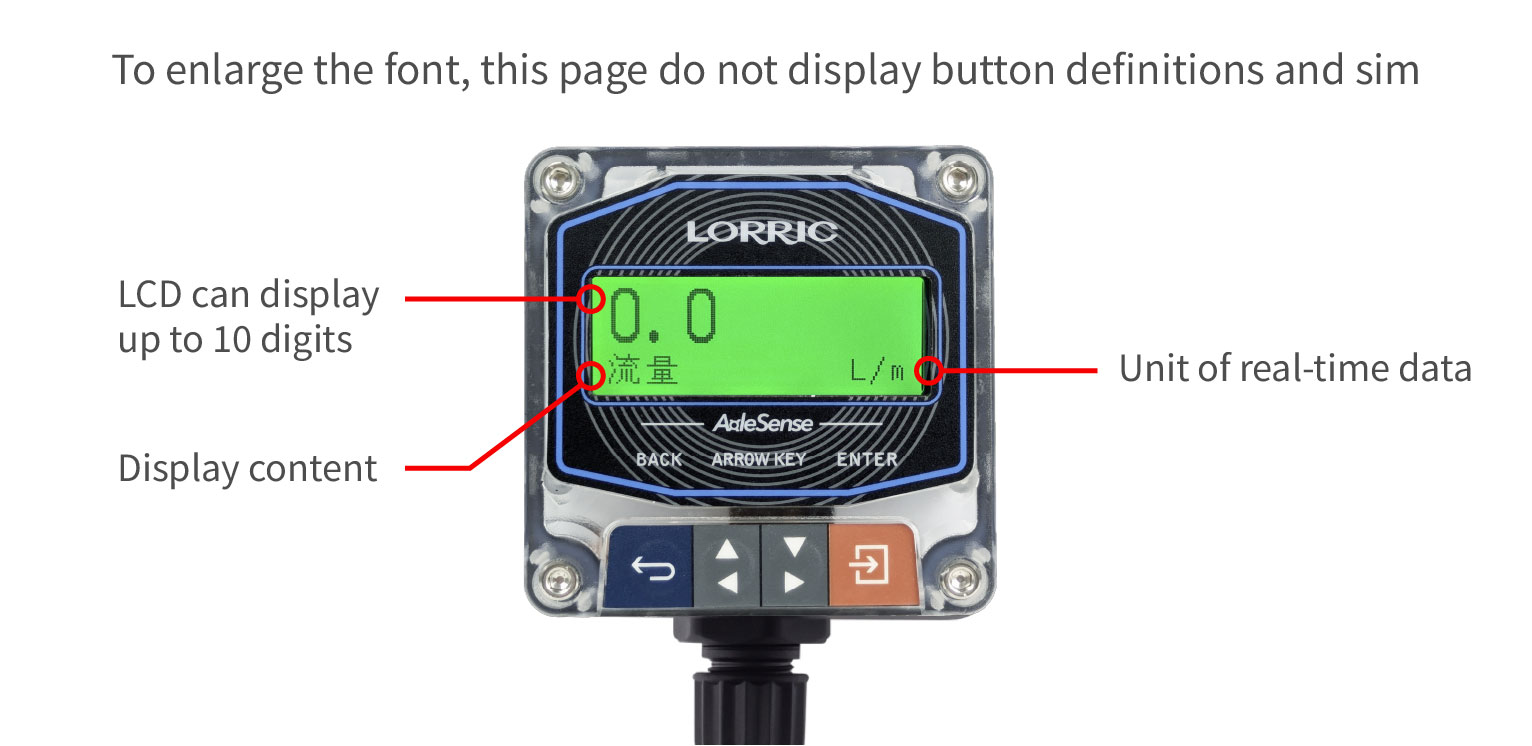

Screen 3: Flowrate <Large>

Displays instant flowrate with enlarged digits for easy viewing. The large digits show the flowrate, and the lower right displays the unit (L/m). Pressing the orange button at the lower right switches to the Settings screen. Flow units can be adjusted in B01 Vol. Unit and B02 Time Unit.

Screen 4: Total <Large>

Displays total flow with enlarged digits for easy viewing. The large digits show Total Flow, POS at the bottom indicates forward direction, and the lower right shows the flow unit (L). Pressing the orange button at the lower right switches to the Settings screen. Total flow units can be adjusted in B03 Total Unit.

Flow in Simulation Mode is also included in the total accumulated flow.

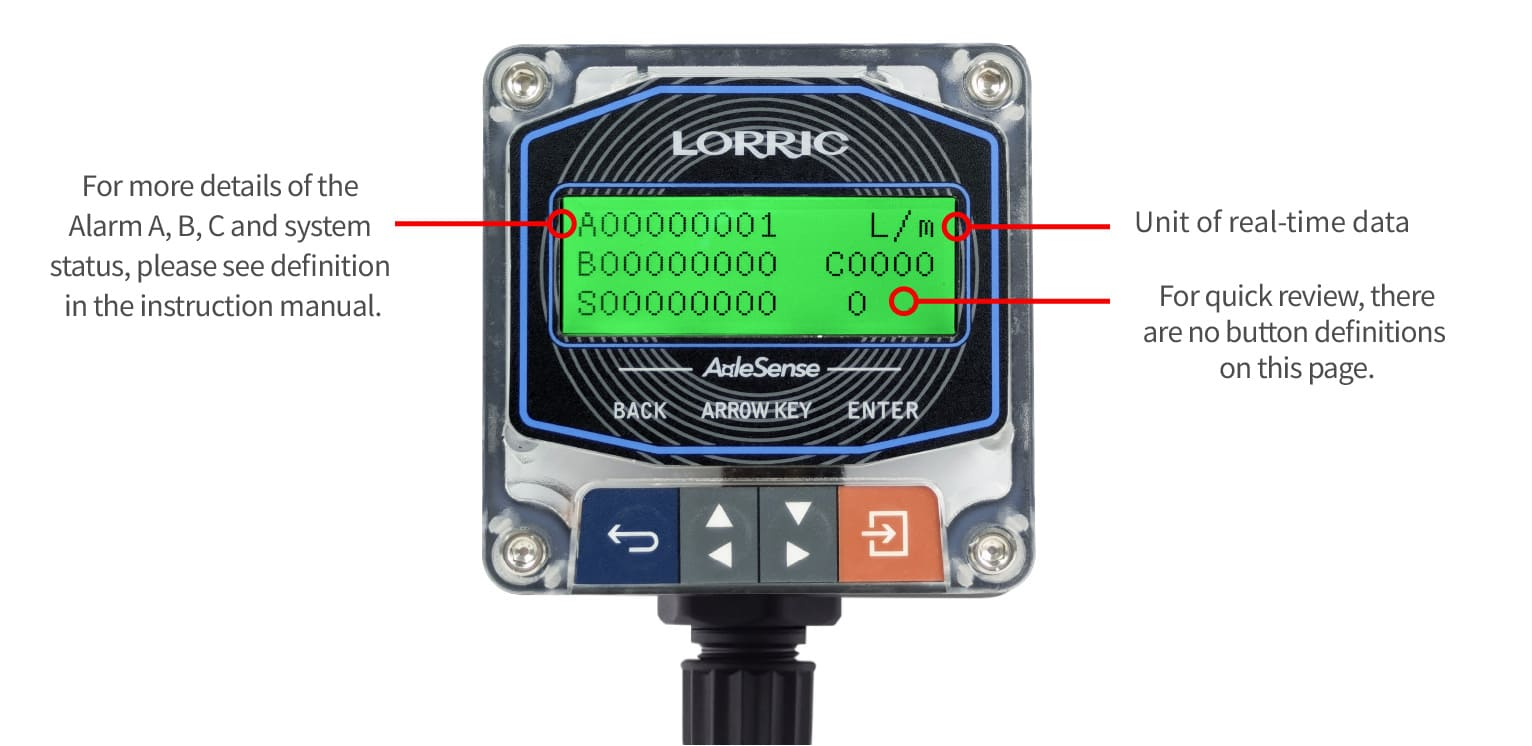

Screen 5: Status Page

Displays system status and diagnostics, showing Alarm A, B, C codes and the system S code. A red flowmeter indicator signals a problem requiring attention; switching to this screen allows confirmation of flowmeter abnormalities. For details, refer to Alarms and System Status (original document link retained at source).

Record a video or take a photo of this page for factory verification when an issue occurs.

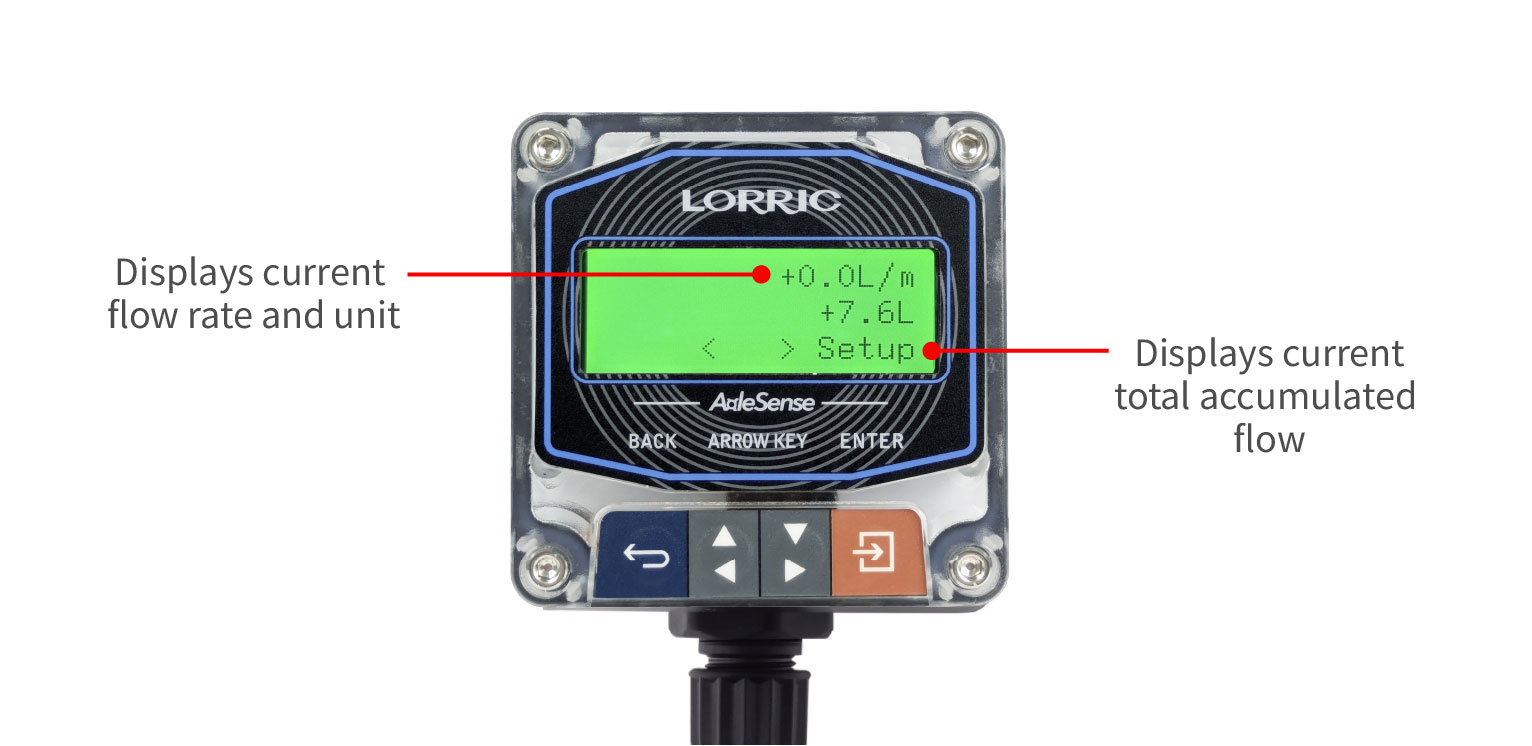

Screen 6: Hybrid1

The hybrid screen displays both Instant Flowrate and Total Flow simultaneously. The LCD first line shows Instant Flowrate, the second line shows Total Flow, and the third line shows the Setup on the lower right, indicating that pressing the orange button switches to the Settings screen.

Instant flow units can be adjusted in B01 Vol. Unit and B02 Time Unit, while total flow units can be adjusted in B03 Total Unit.
