# Product Appearance, Specifications, and Model

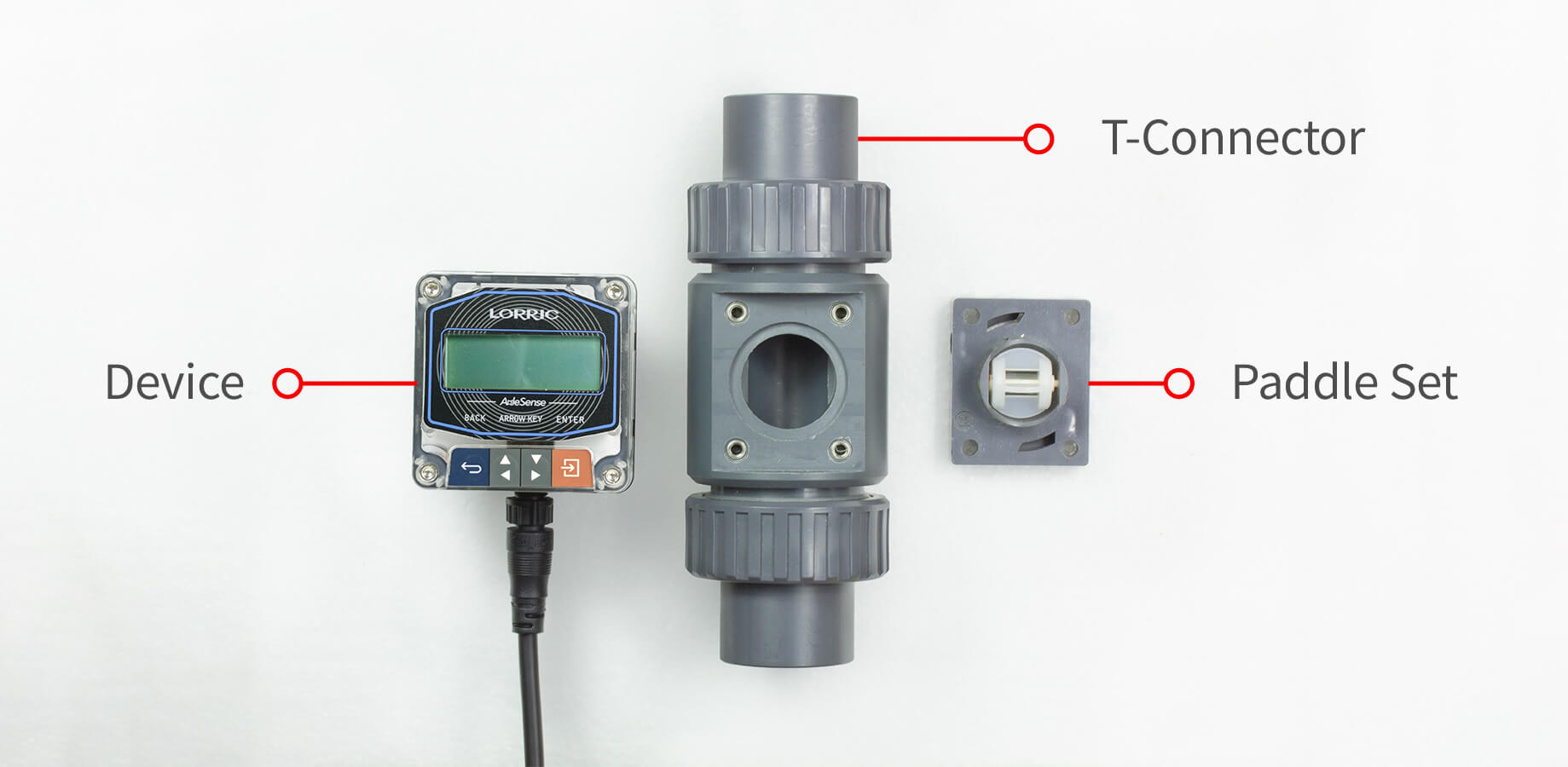

### **Appearance** <a href="#exterior" id="exterior"></a>

<figure><img src="/files/fxKwkBS8xA9ED3z7KxXL" alt=""><figcaption></figcaption></figure>

### **Exploded View**

![](/files/El5aduppaXIhMJBdiydF)

***

### **Models & Dimensions**

#### Device size(mm)

<figure><img src="/files/8WR18g2s1h7DZQhfPWxX" alt=""><figcaption></figcaption></figure>

| **I** | **J** | **K** |
| ----- | ----- | ----- |
| 63    | 63    | 2.5   |

#### Size, Flowrate, and Pipe Fitting Material Options

<table><thead><tr><th width="160.234375">Flowmeter Model</th><th width="180.833251953125">Applicable pipe size (DN mm/ DN inch)</th><th width="186.588623046875">Flowrange</th><th>Material Options</th></tr></thead><tbody><tr><td><strong>FP-P015</strong></td><td>DN 15 / <strong>½</strong> NPS</td><td>4-120.6 LPM / <br>1.056-31.85 gpm</td><td>• UPVC<br>• PPH<br>• PVDF<br>• Stainless Steel (316L)</td></tr><tr><td><strong>FP-P020</strong></td><td>DN 20 / <strong>¾</strong> NPS</td><td>7-188.5 LPM / <br>1.84-49.79 gpm</td><td>• UPVC<br>• PPH<br>• PVDF<br>• Stainless Steel (316L)</td></tr><tr><td><strong>FP-P025</strong></td><td>DN 25 / 1 NPS</td><td>9-294.5 LPM /<br>2.37-77.79 gpm<br><br>(Stainless steel: 7-294.5 LPM / 1.8-77.79 gpm)</td><td>• UPVC<br>• PPH<br>• PVDF<br>• Stainless Steel (316L)</td></tr><tr><td><strong>FP-P032</strong></td><td>DN 32 / 1<strong>¼</strong> NPS</td><td>19-452.9 LPM / <br>5.01-119.64 gpm</td><td>• UPVC<br>• PPH<br>• PVDF<br>• Stainless Steel (316L)</td></tr><tr><td><strong>FP-P040</strong></td><td>DN 40 / 1<strong>½</strong> NPS</td><td>28-754.0 LPM /<br>7.39-190.36 gpm</td><td>• UPVC<br>• PPH<br>• PVDF<br>• Stainless Steel (316L)</td></tr><tr><td><strong>FP-P050</strong></td><td>DN 50 / 2 NPS</td><td>50-1225.7 LPM /<br>13.20-323.79 gpm</td><td>• UPVC<br>• PPH<br>• PVDF<br>• Stainless Steel (316L)</td></tr><tr><td><strong>FP-P065</strong></td><td>DN 65 / 2<strong>½</strong> NPS</td><td>95-2179.0 LPM /<br>25.09-575.6 gpm</td><td>• UPVC<br>• PPH<br>• PVDF</td></tr></tbody></table>

***

### T-connector Dimensions

*(Select T-connector material on tabs below* ⬇️ *)*

{% tabs %}
{% tab title="Plastic T-connector Dimensions" %}

#### Plastic pipe - union diameter size(mm)

<figure><img src="/files/zaBXlB21IC2xN6Ygicp3" alt=""><figcaption></figcaption></figure>

<table><thead><tr><th width="92.0625">Model</th><th width="84.302001953125">A</th><th width="81.026123046875">B</th><th width="80.6407470703125">C</th><th width="80.7813720703125">D</th><th width="82.78125">E</th><th width="82.0313720703125">F</th><th width="82.427001953125">G</th><th width="82.4739990234375">H</th></tr></thead><tbody><tr><td>½"</td><td>164</td><td>100</td><td>27.6</td><td>36</td><td>62.3</td><td>46.2</td><td>115.7</td><td>82.2</td></tr><tr><td>¾"</td><td>168</td><td>100</td><td>32.6</td><td>41.9</td><td>60</td><td>50.5</td><td>115.7</td><td>85.7</td></tr><tr><td>1"</td><td>168</td><td>100</td><td>40.6</td><td>50</td><td>60</td><td>60</td><td>115.7</td><td>85.7</td></tr><tr><td>1¼"</td><td>210</td><td>114</td><td>50.2</td><td>59.6</td><td>65</td><td>75.6</td><td>127</td><td>89.2</td></tr><tr><td>1½"</td><td>218</td><td>120</td><td>56</td><td>65.7</td><td>70</td><td>83</td><td>134</td><td>92.5</td></tr><tr><td>2"</td><td>269.5</td><td>133.3</td><td>72</td><td>81</td><td>81</td><td>99.7</td><td>148.8</td><td>99</td></tr></tbody></table>

#### Plastic pipe - spigot pipe diameter size(mm)

<figure><img src="/files/0PGRwvyrTrMPsaIRiQPF" alt=""><figcaption></figcaption></figure>

| Model        | A   | B  | C  | D  | E     | F     |
| ------------ | --- | -- | -- | -- | ----- | ----- |
| 2½"          | 160 | 70 | 76 | 92 | 106.5 | 152.5 |
| {% endtab %} |     |    |    |    |       |       |

{% tab title="Metal T-connector Dimensions" %}

### Metal Fitting - Female Thread

<figure><img src="/files/5j0yUnqtmTyvX8PtGn9B" alt=""><figcaption></figcaption></figure>

| Model | A     | B      | C      |
| ----- | ----- | ------ | ------ |
| ½"    | 120   | 89.37  | 103.4  |
| ¾"    | 120   | 89.5   | 106.91 |
| 1"    | 120   | 89.41  | 111.16 |
| 1¼"   | 119   | 95.2   | 120.7  |
| 1½"   | 129   | 98.55  | 126.55 |
| 2"    | 148.5 | 104.98 | 137.98 |

<figure><img src="/files/DenqzAYUfT28qYnVVk1w" alt=""><figcaption></figcaption></figure>

| Model | D  | E    | F    | G     | H     |
| ----- | -- | ---- | ---- | ----- | ----- |
| ½"    | 27 | 64.1 | 64.1 | 64.1  | 76.15 |
| ¾"    | -  | 64.1 | 64.1 | 64.1  | 76.15 |
| 1"    | 42 | 64.1 | 64.1 | -     | 76.15 |
| 1¼"   | 51 | 64.1 | 64.1 | 51    | 76.15 |
| 1½"   | 56 | 64.1 | 64.1 | 56    | 76.15 |
| 2"    | 65 | 64.1 | 64.1 | 76.15 | 76.12 |

<figure><img src="/files/HbhcGWkll3WTCzWHt5r4" alt=""><figcaption></figcaption></figure>

| Model | I     | J  | K      | L    |
| ----- | ----- | -- | ------ | ---- |
| ½"    | 95.41 | -  | 95.41  | 42.4 |
| ¾"    | 42.4  | -  | 106.91 | 42.4 |
| 1"    | -     | -  | 111.16 | 42.4 |
| 1¼"   | 54    | 20 | 121.2  | 42.4 |
| 1½"   | 59    | 24 | 127.05 | 42.4 |
| 2"    | 68    | 30 | 137.98 | 42.4 |

***

### Metal Fitting - Male Thread

<figure><img src="/files/43miv75txxS5EVkhFivx" alt=""><figcaption></figcaption></figure>

<table><thead><tr><th width="94.33331298828125">Model</th><th>A</th><th>B</th><th>C</th><th>D</th><th>E</th></tr></thead><tbody><tr><td>½"</td><td>120</td><td>58.8</td><td>111.16</td><td>89.4</td><td>33</td></tr><tr><td>¾"</td><td>120</td><td>57.69</td><td>106.09</td><td>89.4</td><td>30</td></tr><tr><td>1"</td><td>120</td><td>63.42</td><td>103.41</td><td>89.4</td><td>26</td></tr></tbody></table>

<figure><img src="/files/fF3frairddDnUUuMsavg" alt=""><figcaption></figcaption></figure>

| Model | F    | G    | H     |
| ----- | ---- | ---- | ----- |
| ½"    | 64.1 | 64.1 | 76.15 |
| ¾"    | 64.1 | 64.1 | 76.15 |
| 1"    | 64.1 | 64.1 | 76.15 |

<figure><img src="/files/a8uYWRwQvKKF7KDk2KPk" alt=""><figcaption></figcaption></figure>

| Model         | I    | J      |
| ------------- | ---- | ------ |
| ½"            | 42.4 | 111.16 |
| ¾"            | 42.4 | 106.09 |
| 1"            | 34   | 103.41 |
| {% endtab %}  |      |        |
| {% endtabs %} |      |        |

#### • **Pulse signal and flow conversion**

UPVC T-connector

| Pipe diameter | Model   | Metric ratio (pulses per litre) | US Gallon (pulses per US gal) | UK Gallon (pulses per UK gal) |
| ------------- | ------- | ------------------------------- | ----------------------------- | ----------------------------- |
| 1/2"          | FP-P015 | 106.55                          | 403.33                        | 484.38                        |
| 3/4"          | FP-P020 | 67.23                           | 254.48                        | 305.62                        |
| 1"            | FP-P025 | 53.33                           | 201.89                        | 242.46                        |
| 1-1/4"        | FP-P032 | 24.44                           | 92.51                         | 111.11                        |
| 1-1/2"        | FP-P040 | 17.02                           | 64.43                         | 77.38                         |
| 2"            | FP-P050 | 9.86                            | 37.31                         | 44.81                         |
| 2-1/2"        | FP-P065 | 5.42                            | 20.52                         | 24.64                         |

\*Values are based on UPVC pipe. Actual figures may vary slightly depending on pipe material and model.

***

### **1. Mechanical Specifications**

| Installation Method                    | in-line (Pipe segment)                                                                                                                        |
| -------------------------------------- | --------------------------------------------------------------------------------------------------------------------------------------------- |
| Fluid Temperature in Pipe              | <p>Recommended:<br>UPVC : 0-50°C (32\~122°F)<br>PPH : 0-90°C<br>PVDF：<mark style="color:$warning;">-15</mark>~~100°C<br>SS36L: -20~~100°C</p> |
| Device working environment temperature | -10\~60°C (14\~140°F)                                                                                                                         |
| Response Time                          | ≤ 0.5 (2Hz) to 1 second (1Hz)                                                                                                                 |
| Ingress Protection                     | IP66<mark style="color:red;">\*</mark>                                                                                                        |

<mark style="color:red;">\*</mark> <mark style="color:red;"></mark><mark style="color:red;">**IP66 Rating**</mark>\
IP66 stands for Ingress Protection 66. The IP rating is a standard that classifies the degree of protection provided by an electrical enclosure against the intrusion of foreign objects. The format is IPXX, where XX represents two digits: the first digit indicates the level of protection against contact and solid foreign objects (dust protection), and the second digit indicates the level of protection against water ingress. A higher number indicates a higher level of protection. For IP66: the first 6 means complete protection against dust ingress; the second 6 means protection against powerful water jets without harmful effect.

### 2. Measurement Specifications

<table data-header-hidden><thead><tr><th width="222.3212890625">Measurement Spec</th><th>Description</th></tr></thead><tbody><tr><td>Applicable Fluids</td><td>Clear, oil or chemicals with less impurities (&#x3C;1%)</td></tr><tr><td>Accuracy</td><td><mark style="color:yellow;">±2.5% OR + ± 0.5 % FS (>0.3m/s)**</mark></td></tr><tr><td>Repeatability</td><td>± 0.4 %</td></tr><tr><td>Measurement Principle</td><td>Axlesense Technology: magnetism and paddle wheel rotation</td></tr><tr><td>Instantaneous Data</td><td><mark style="color:$primary;">Instantaneous flow rate</mark></td></tr><tr><td>Totalized Data</td><td><mark style="color:$primary;">Positive flow</mark></td></tr><tr><td>Applicable fluid maximum dynamic viscosity </td><td>300cSt<mark style="color:red;">***</mark></td></tr><tr><td>Flow velocity range</td><td><p>± 0.3~10m/s </p><p><mark style="color:$primary;">Can extend to ± 0.15m ~ 10m/s ****</mark></p></td></tr></tbody></table>

<mark style="color:red;">\*\*</mark> <mark style="color:red;"></mark><mark style="color:red;">**Accuracy Notice**</mark>\
Accuracy is calibrated under controlled conditions using clean water at ambient temperature with CNS UPVC pipes. Actual performance may vary due to fluid properties, pipe conditions, installation, and environmental factors.

<mark style="color:red;">\*\*\*</mark> The device is calibrated with normal temperature water. Fluids with different viscosities may have different results, and may also change the minimum and maximum flow velocity.

<mark style="color:red;">\*\*\*\*</mark> The flow velocity range may be slightly different due to factors such as piping diameter and fluid coefficient.

### 3. **Electrical Specifications**

<table data-header-hidden><thead><tr><th valign="top"></th><th></th></tr></thead><tbody><tr><td valign="top">Power Supply</td><td><p>DC 24V, 200 mA</p><p>(Excluding 4–20 mA and RS485 current)</p></td></tr><tr><td valign="top">Reverse Polarity Protection</td><td>Yes</td></tr></tbody></table>

* #### NPN Output

  | Power Supply                | DC 24V 200mA                      |
  | --------------------------- | --------------------------------- |
  | Reverse Polarity Protection | Yes                               |
  | Wiring                      | NPN supported (PNP not supported) |

* #### **Analog Current Output (4–20 mA)**

  | Wiring                                       | 3-wire configuration                                                       |
  | -------------------------------------------- | -------------------------------------------------------------------------- |
  | Power Supply                                 | Device shares power with the main unit, no external power supply required. |
  | Max. Output Range (incl. error signal range) | 2.4 \~ 21.6 mA                                                             |
  | Resolution                                   | 10-bit (0–24 mA physical range)                                            |
  | Response Time                                | <p>≤0.5 to 1 s</p><p>(matches display update rate)</p>                     |
  | Loop Resistance                              | 600ohm @ 24VDC                                                             |

* #### **Digital Communication: Modbus RTU (RS-485)**

  | Baud Rate                 | 9600, 19200, 38400, 57600 |
  | ------------------------- | ------------------------- |
  | Wiring                    | 2-wire                    |
  | Maximum Nodes per Network | 256                       |

### **4. User Interface**

<table data-header-hidden><thead><tr><th width="150.9052734375"></th><th></th></tr></thead><tbody><tr><td>Languages</td><td>English, Traditional Chinese</td></tr><tr><td>Units</td><td><p><mark style="color:$warning;">Flow: L, m, m³, ft, ft³, Imp gal, US gal</mark><br><mark style="color:$warning;">Time: Second, Minute, Hour, Day</mark><br><mark style="color:$warning;">Velocity: m/s, ft/s</mark><br><br><mark style="color:$warning;">Metric: Litre, cubic meters, meters</mark></p><p><mark style="color:$warning;">Imperial: foot, Cubic foot, Uk gallon, US gallon</mark></p><p><mark style="color:$warning;">Time: second, minute, hour, day</mark></p></td></tr><tr><td>Display</td><td><p>Single-screen display:</p><ul><li>3-color backlit 3-line 16-character LCD<br>Line 1: Current parameter and unit<br>Line 2: Measurement data<br>Line 3: Key definitions (see Human-Machine Interface section)</li></ul></td></tr><tr><td>Digits</td><td>LCD 10 Digits <mark style="color:$warning;">(Not including sign and decimal point)</mark></td></tr><tr><td>Operation Keys</td><td>4-touch keys</td></tr><tr><td>Wired Communication</td><td>Analog Output: Powered 4–20 mA<br>Modbus RTU: RS-485, 2-wire<br>NPN Output<br>(Includes 2 m signal cable, 6-core, non-isolated)</td></tr></tbody></table>

## Shipping Contents

**Besides other agreed contents, our standard package contains:**

<figure><img src="/files/ArrvRrrTzDAWfoEUzua7" alt=""><figcaption></figcaption></figure>

* **FP-AS310 Device \* 1**
* **2m 6 pin cable \* 1**
* **Quick starting manual \* 1**
* **Screws to connect the device and paddle set** \*1\
  (Locking screws with your convenient side is suggested. It is unnecessary locking screws both sides)
* **Paddle Set \* 1**
  * Paddle set (incl. paddle base, paddle wheel, shaft) \* 1
  * Paddle set M4 screws \* 4
  * Paddle set O-ring \* 1
* **T-connector** (Union/Spigot/Flange) **\* 1**&#x20;

  Union standard T-connector package contains:

  * Union nuts \* 2
  * Union adapter \* 2
  * O-ring \* 2

  Spigot standard T-connector package contains:

  * Spigot T-connector\* 1
  * O-ring \* 2

  Flange standard T-connector package contains:

  * Flange Disk \* 2
  * T-connector\* 1
  * O-ring \* 2

{% hint style="info" %}
Components can also be purchased separately\
T-connector is generally shipped with a paddle set.
{% endhint %}


---
